Gig-ISO 8 High Current Transformer Isolated Pedal Power Supply
Gig-ISO 8 High Current Transformer Isolated Pedalboard Power Supply, Gig-ISO 8 packs a 8 -outlet isolated power supply into compact form factor. 8 selectable outputs at +9V, +12V , +15V or +18V output enabling it to power nearly any pedal. Completely isolated by separate Transformers (8 total) for each output. Each output comes with LED indicator and a Blue Power LED for the Main DC input. A THRU output make it easier to add another Gig-ISO 4 or 8 for more outputs.
Gig-ISO 4 Features
- 4 (+9V or +12V 500mA) High Current Output (2.1 Center Negative)
- 2 (+9V or +15V 500mA) High Current Output (2.1 Center Negative)
- 2 (+9V 500mA or +18V 250mA) High Current Output (2.1 Center Negative)
- 1 THRU output for DC Input (non-isolated, 2.1 Center Positive)
- Transformer Isolated (8 individual)
- Aluminum Enclosure

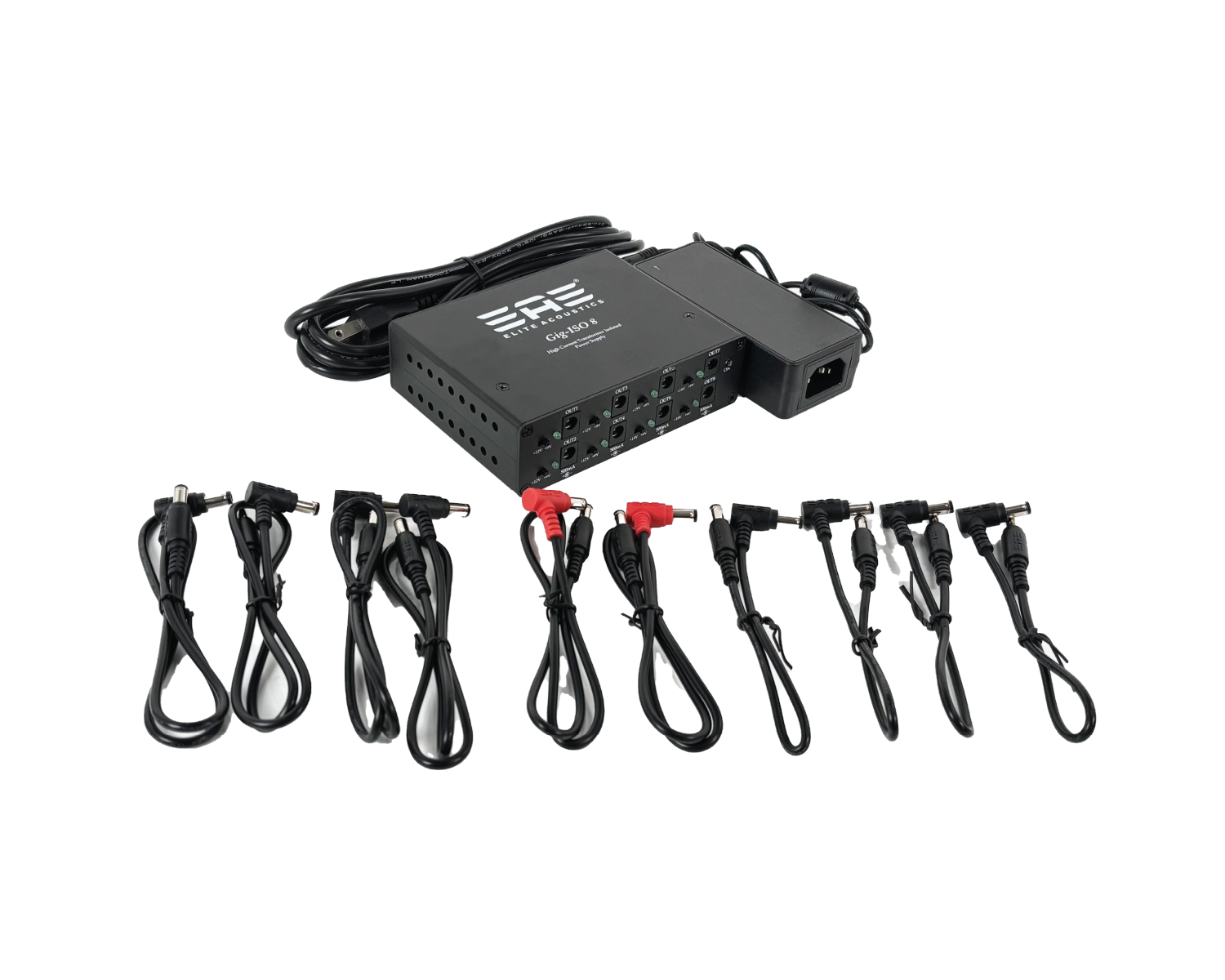

- 2.1 to 2.1 250mm cable (x4) – Included
- 2.1 to 2.1 500mm cable (x4) – Included
- 2.1 to 2.1 Reverse Polarity Cable 500 (x2) – Included
- 2.1 to 2.5 Reverse Polarity Cable 500mm (*Optional Purchase*)
- 2.1 to 2.5 Cable 500mm (*Optional Purchase*)
- Compact size – 1 3/4″x 3 1/2″ x 5″
- 12VDC power adaptor input (5000mA minimum, 2.1mm *Center Positive*) – Included
- Designed and assembled in USA
Gig-ISO 4 pedal board power supply Intro
Gig-ISO 4 Pedal Board Power Supply Frequent Questions and more
- 1) Can Gig-ISO 8 be used to power the GigMix 4-1 or StompMix 4?
- – Yes, just make to use the Reverse Polarity 2.1 to 2.1 cable (Color RED)
- 2) Can Gig-ISO 8 to be used to power the StompMix 6-2
- – Yes, StompMix 6-2 require 500mA minimum.
- 3) Can Gig-ISO 8 to be used to power the Eventide Pedals
- – Yes, just make sure to use the Reverse Polarity 2.1 to 2.5 cable that is available for purchase.
