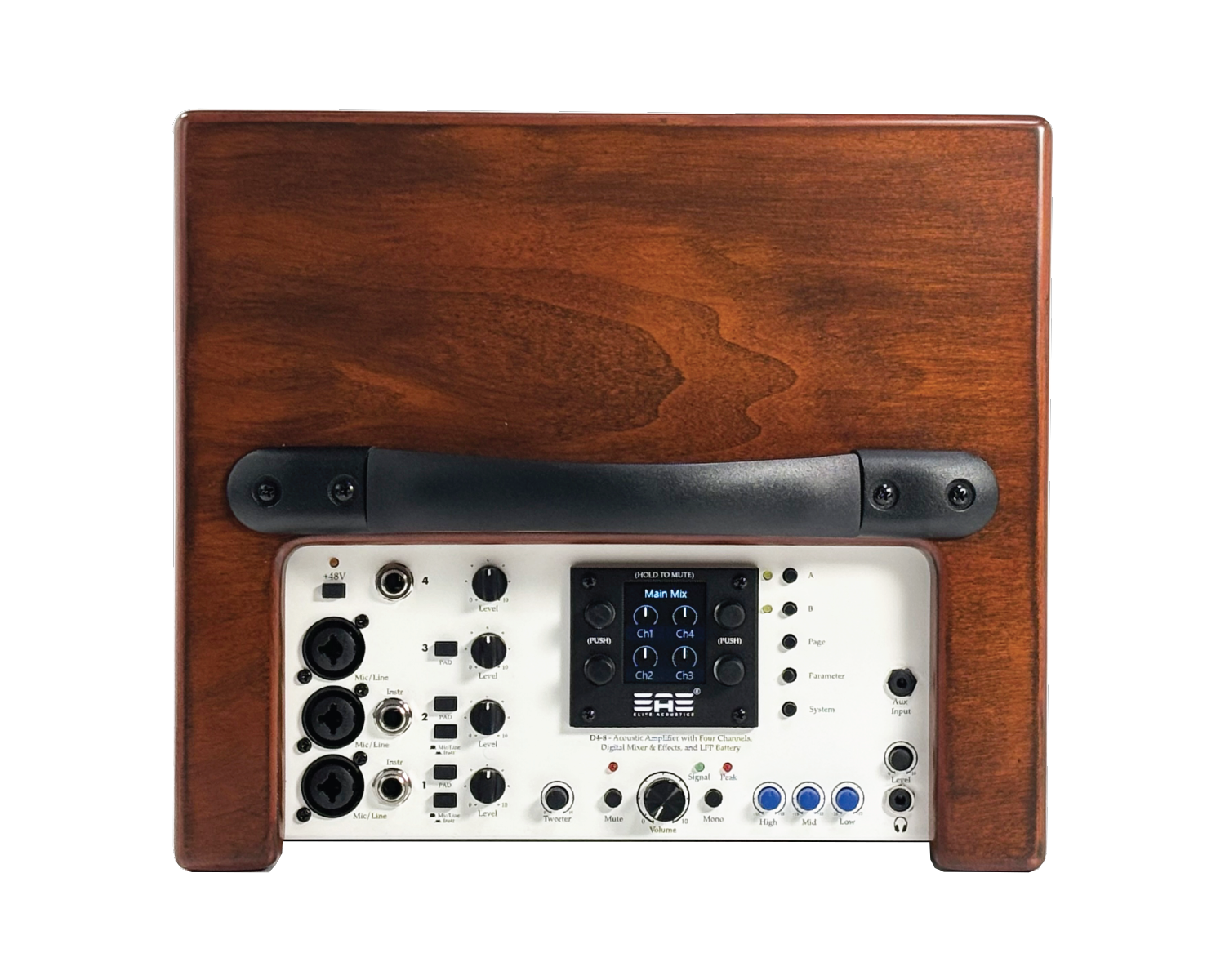

D4-8 Compact Acoustic Amplifier with 4 Chan Digital mixer, monitor controls, digital effects and LFP Battery
While keeping amplifier features as the A1-8, the D4-8 Compact Rechargeable Acoustic Amplifier ported the powerful 32-bit 100Mhz DSP engine from the StompMix 4 digital mixer, all packed into the same size cabinet as the A1-8/D6-8 PRO. The EAE D4-8’s superb functionality and portability provides unparalleled versatility. Powered by a LFP Rechargeable Battery, playtime on the D4-8 is 4-6 hours..
D4-8 LFP Battery Powered Acoustic Amplifier features
- Built-in 4-Channel Digital Mixer
- 10 user scene memories.
- Color display
- Input Level Monitoring
- 2 Class-A Mic inputs with TRIM/PAD (CHAN 1-2) with +48V
- 2 INSTR Selectable inputs (CHAN 1-2)
- 1 MIC Class-A Mic Put with PAD (CHAN 3) with +48V
- 1 LINE/INSTR input (CHAN 4)
- Independent Reverb, Shimmer effect level on each channel
- 2 notch filter available on each channel
- High Pass Filter and Phase Reverse on each channel
- Noise Gate and Compressor on each channel
- 3 Band EQ with Sweepable MID on each channel
- Max 1 second Delay with Tap Tempo (assign to one Channel at a time)
- Assignable A/B switch functions (MUTE channels, EFX by-pass, Tap Tempo, Scene change etc)
- Headphone L/R Outputs with Level Control
- Main MIX and AUX MIX
- Speaker Output Level Control with MONO and MUTE switch
- Analog 3 Band EQ for Speaker Output
- Separate Tweeter Level Control
- Remove A/B switches Jack (option Footswitch)
- Output 1 (L/R XLR jacks) – Balanced
- Output 2 (L/R 1/4″ TRS jack)
- 1/8″ AUX L/R input
- 12VDC power inputs (5000mA, 2.1mm *Center Positive*) – Included
- Built-in LFP battery – Caged in a Aluminum enclosure.
- Integrated Pole Mount
- 18 LBs
- Dimensions: 12.13″w x 11.13″ H x 10.55″ D
- Designed and assembled in USA
PROTECTION CIRCUITS AND LIFEPO4 BATTERY SAFETY
The D4-8 utilizes the same Lithium Iron Phosphate (LifePO4/LFP) batteries and protection/charging circuits as A6-55 since 2018. LifePO4 batteries are “NOT” the same type as Lithium Ion (Li+) or Lithium Polymer Batteries (LiPO or Li-Poly). We selected Lithium Iron Phosphate (LifePO 4) type of batteries for it’s advantages in safety properties and long service life. LifePO4 is thermally and chemically stable, reliable without the possibility of lithium fires. LifePO4 batteries have long service life, with a shelf life that far exceeds the service life of many other batteries. Not only we enclosed the Batteries in a metal cage, we added many Battery Protection circuits – Over Voltage protection, Thermal Shutdown, Over Charge protection, Over Drain protection. The LifePO4 batteries are used in our products are UL safety approved and MSDS certified.
